Notes:Latest betaflight firmware 2025.12.1 version has fixed the blackbox issue .

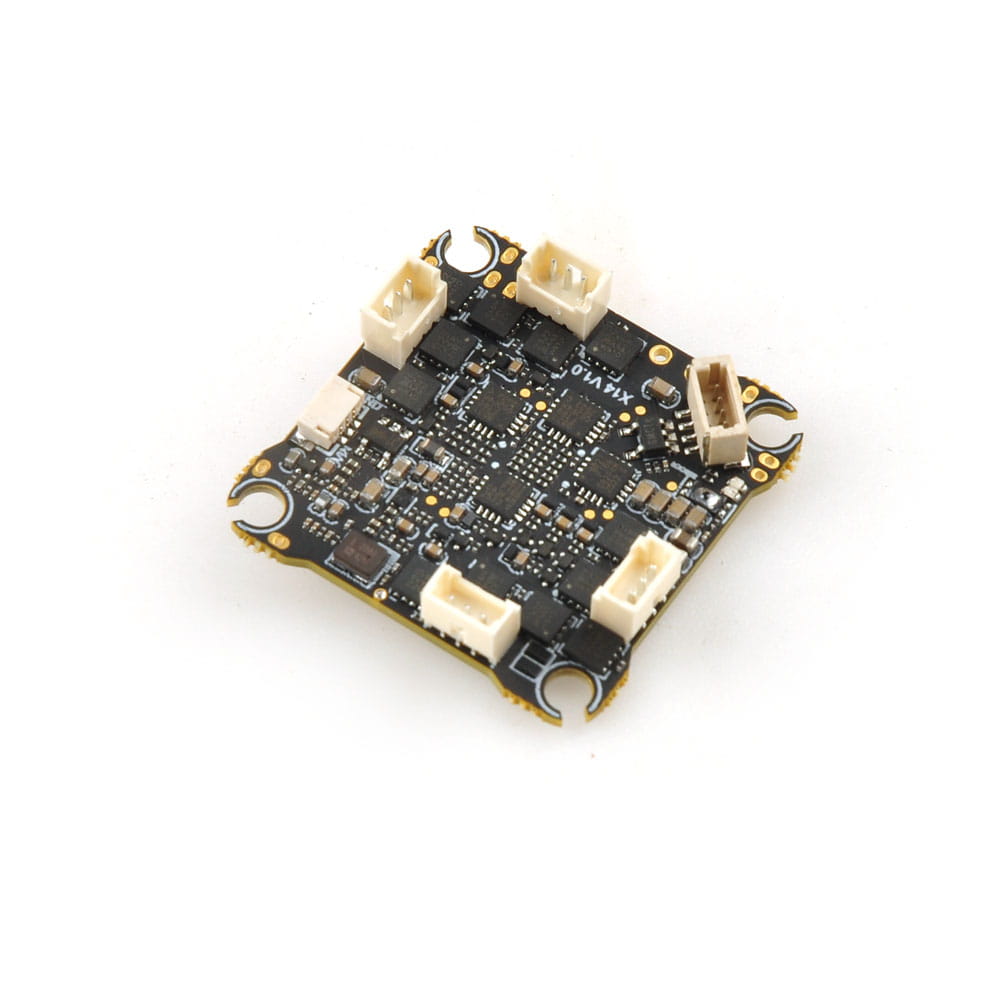

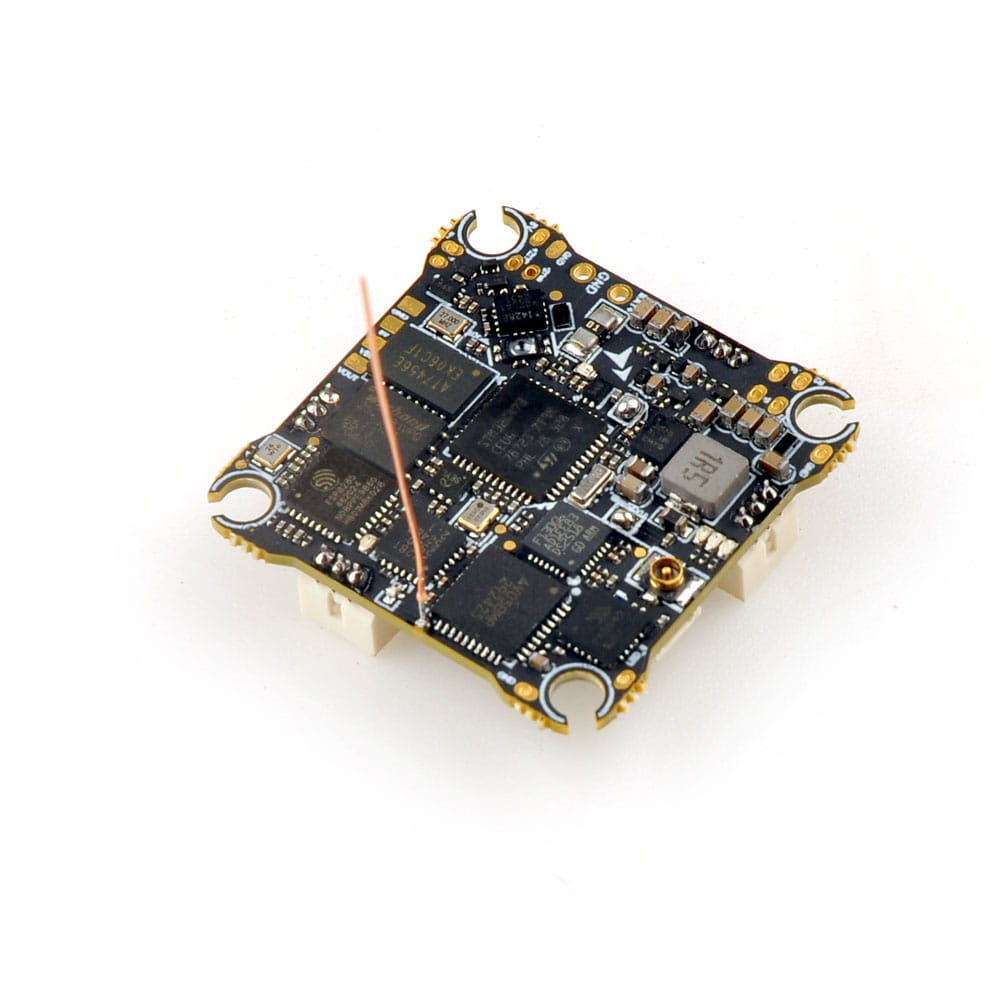

X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building.

FC

• MCU: STM32G473CEU6
• Gyro: ICM42688P
• Blackbox memory: 16MB
• Sensor: Voltage & Current
• BEC: 5V, Max. 2A
• UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
• BetaFlight OSD: AT7456ELAH

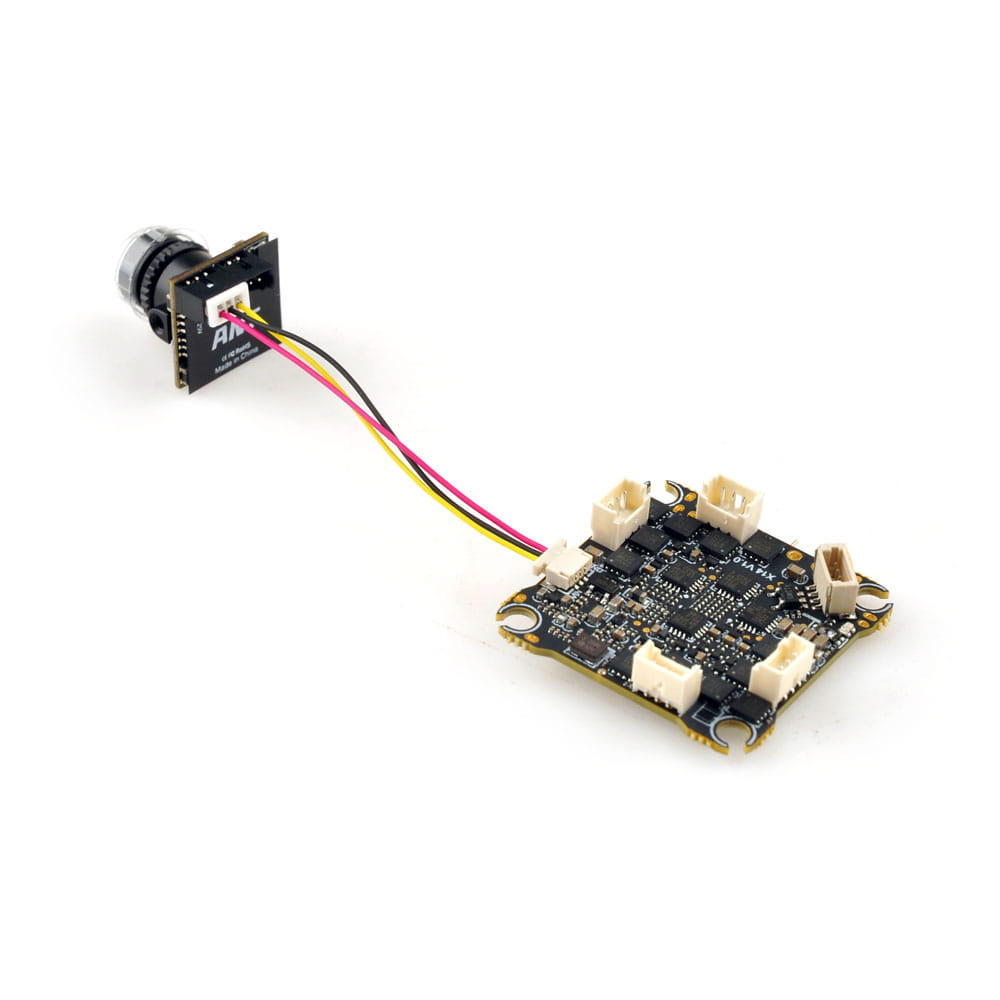

• Camera plug: 0.8mm 3pin
• ESC: 12A continuous
• OPENVTX: 5.8GHz 48 channels, Max. 400mW
• FC firmware target: CRAZYBEEG473

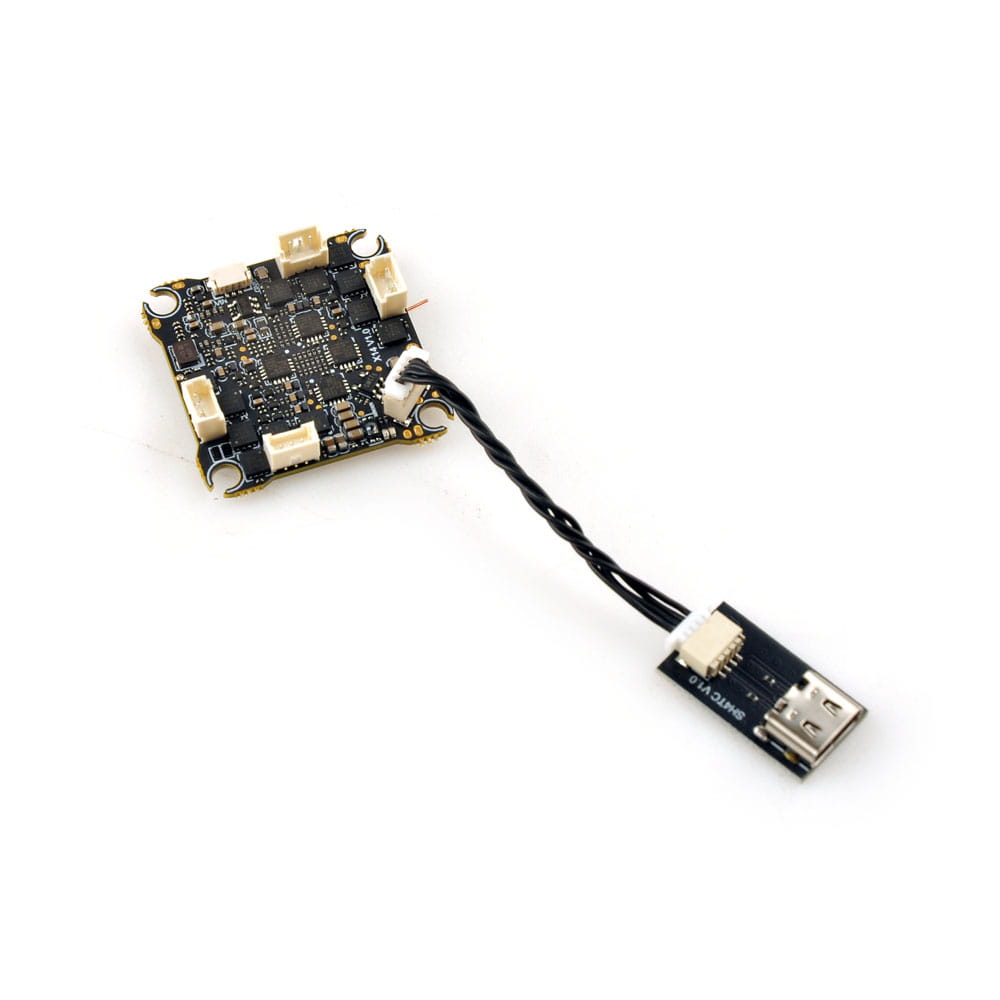

• USB port: SH1.0-4Pin
• Battery connector: XT30 or A30
• Mounting hole size: 5mm x 25.5mm
• Weight: 83g without power pigtail and VTX antenna

ESC

• Power input: 1-2S Lipo input
• Current: 12A continuous, 15A peak
• ESC firmware: V0.19 48KHz Bluejay
• Firmware target: Z_H_30_48KHz
• Digital signal protocol: DShot300, DShot600

VTX

• OPENVTX Firmware
• Support firmware upgrade by openvtx configurator
• Output power: PIT/10/25/100/400
• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
• Channel SEL: SmartAudio2.1
• Modulation type: FM
• Operating temperature: -10℃~+80℃

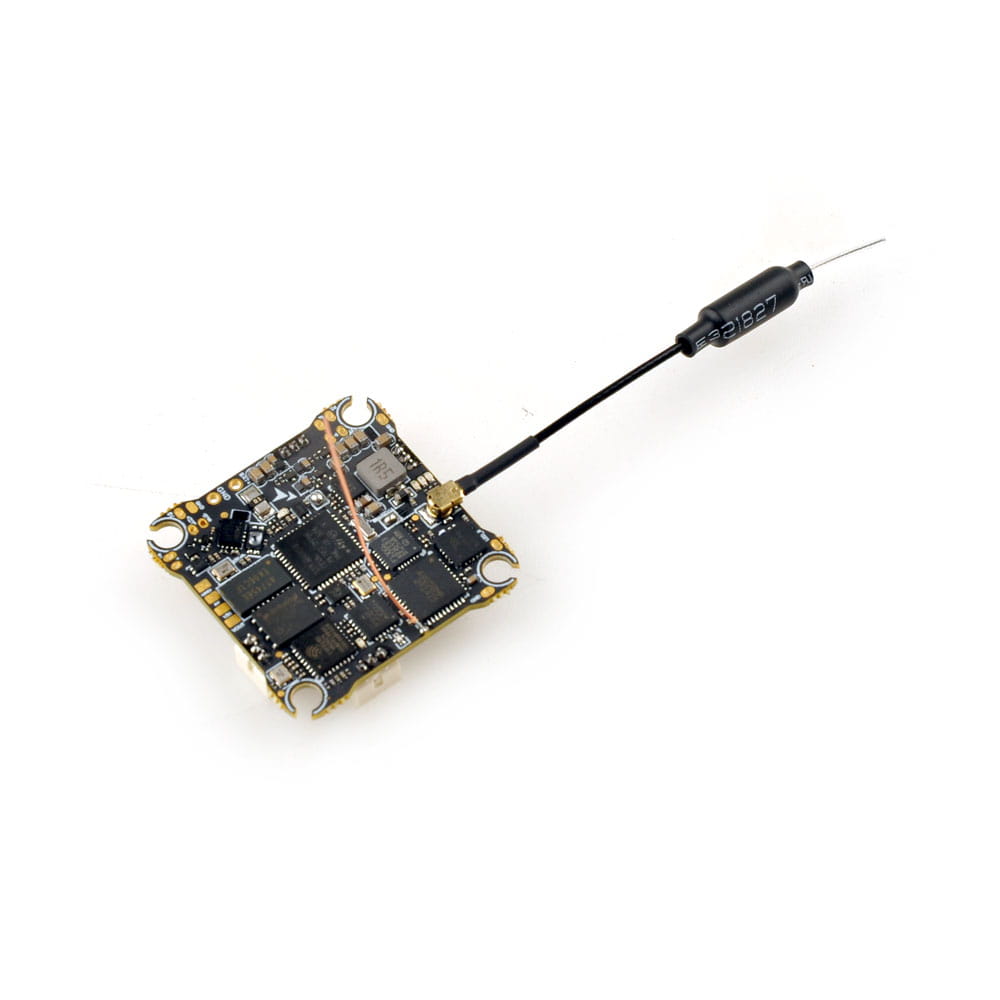

• Antenna port: IPEX1/U.FL

RECEIVER

• Serial ExpressLRS 2.4GHz
• Antenna: Enameled copper wire 31mm length
• Firmware target: HappyModel EP1/EP2 2.4GHz RX
• Telemetry output Power: <12dBm
• Compatible with ExpressLRS V3.x.x TX Module
• ExpressLRS firmware version 3.0.1
• Support flash firmware by WIFI
• Bind method is the same like all ExpressLRS 2.4GHz receivers
